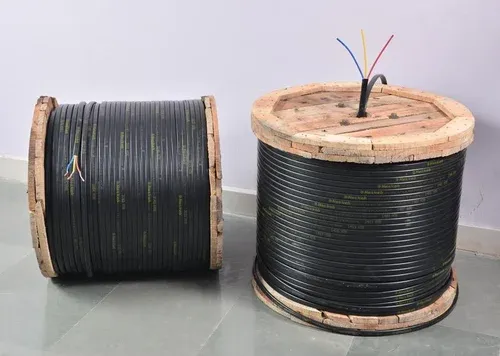

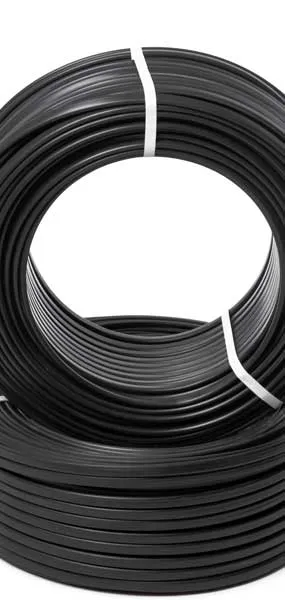

Submersible Flat Cables

What Is a Submersible Flat Cable?

A submersible flat cable is a flat electrical cable that carries power from the starter or control panel at the surface to the motor of a submersible pump. It has several insulated cores, usually laid side by side, held together inside a common outer cover. The cores carry the current, and the outer cover protects them from water, rubbing and wear.

Because the cable works under water for years, its insulation has to be strong and its cover has to be tough. Ordinary house wire is not made for this. A cable made for submersible use is.

You will find this product sold under many names, such as flat submersible cable, flat submersible pump cable, submersible flats cables, or submersible flat cables wire. All of these names describe the same type of product.

Why the Flat Shape Matters

The shape of a submersible cable is not an accident. A flat cable has real advantages in a borewell.

It fits narrow spaces. A borewell is a narrow hole, and the pump, the pipe and the cable all have to share it. A flat cable sits neatly along the pipe and takes up less room than a round cable of the same capacity.

It lies along the pipe. The flat form follows the line of the rising main, so the cable is less likely to snag or twist on the way down.

It is easier to clamp. Flat cables are simple to fix to the pipe at regular intervals, which keeps the cable steady and avoids strain on the joints.

For these reasons, the flat shape is the standard choice for flat submersible pump cable in borewells and wells.

Key Features

These are the main features of our submersible flat cables:

• Flat construction: the cores sit side by side for easy fitting along the pipe.

• Insulated cores: each core is insulated to keep current inside and prevent short circuits.

• Tough outer cover: the cover protects against water, rubbing and wear.

• Copper conductors: copper carries current well and holds up over years of service.

• Flexible build: the cable bends easily during lowering and installation.

• Tested quality: every product is checked in our own lab before it ships.

Where Submersible Flat Cables Are Used

These cables are used wherever a submersible pump is fed with electric power. Common uses include:

• Borewell pumps for farms and homes

• Open well submersible pumps

• Agricultural irrigation systems

• Domestic and municipal water supply

• Industrial pumps for water handling

• Pump replacement and repair work

• Pump assembly by manufacturers and dealers

In all of these, the cable does the same job. It carries power safely from the surface to the motor, through water and over long distances.

Benefits of Using a Good Flat Submersible Cable

Safe power supply. Strong insulation keeps current where it should be, which lowers the risk of shocks and short circuits.

Fewer breakdowns. A cable that holds up in water means fewer pump stoppages and fewer expensive lifts from the borewell.

Easy installation. A flat, flexible cable is simple to lower into the borewell and to clamp along the pipe.

Long service life. A tough outer cover resists rubbing against the borewell wall and the pipe.

Steady performance. A properly sized copper conductor carries the pump's current without overheating.

Good value. The cost of a good cable is small compared with the cost of pulling up a failed pump.

How to Choose the Right Submersible Flat Cable

A few simple checks will help you pick well:

1. Check the pump rating. The cable must carry the full current of the motor. Check the motor's current and match the cable size to it.

2. Check the length. The longer the cable, the more power is lost along the way. A deep borewell may need a thicker conductor.

3. Check the type of supply. Single-phase and three-phase pumps need cables with a different number of cores.

4. Check the borewell size. A flat cable should sit comfortably beside the pipe with room to spare.

5. Allow some extra length. Keep spare cable above ground for connections and future repairs.

6. Ask us for help. Tell us your pump rating, depth and type of supply, and our team will suggest the right cable.

For the winding wire used inside the pump motor itself, see our submersible copper winding wires. To see our full cable range, visit our cables page.

Installation and Safety Tips

A good cable still needs careful installation. These habits protect the cable and the people who use it:

• Check the cable for cuts or nicks before lowering it.

• Clamp the cable to the pipe at regular intervals so it does not hang loose.

• Lower the cable slowly. Do not drag it against sharp edges.

• Keep the joint between the cable and the motor sealed against water.

• Never use the cable to lift or hold the pump. Use the rising main or a rope.

• Do not bend the cable sharply or leave it kinked.

• Keep spare cable in a dry, shaded place away from oil and direct sun.

For electrical work, have connections made by a qualified electrician. This protects both people and equipment. A damaged cable should be replaced, not taped over.

Why Buy from Apple Insulated Wires?

With over 25 years in the wire and cable industry, Apple Insulated Wires Pvt. Ltd. knows that pump owners and makers need cable they can depend on every time. As a submersible flat cable manufacturer and supplier, we treat small and large orders with the same care. Buyers who look for a submersible flats cables supplier want steady quality and a supplier who answers questions, and that is what we aim to give.

• Tested in our own lab: every product is checked in-house before it ships.

• Made to your needs: we can adjust conductor size and core count to match your pump.

• Clean processes: our work is RoHS compliant and eco-friendly.

• Bulk supply: we supply large quantities at competitive prices.

• India and export: we pack with care and prepare the documents needed for export.

• Wire and cable from one supplier: we also make submersible winding wire for pump motors.

• Helpful support: our team is ready to answer your questions.

Get a Quote

Submersible flat cables are a dependable choice for borewell and well pumps. If you want to know the sizes available or need help matching a cable to your pump, our team will guide you. Call or message us on +91 9624471888. You can also write to info@applewires.com.
