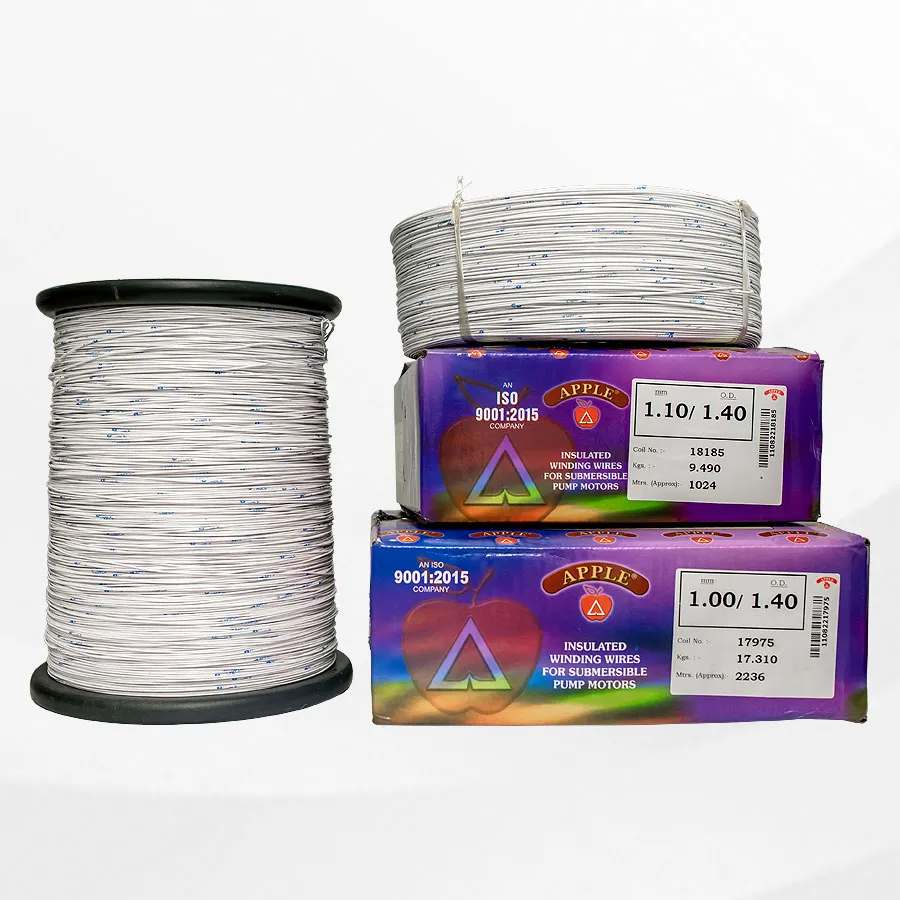

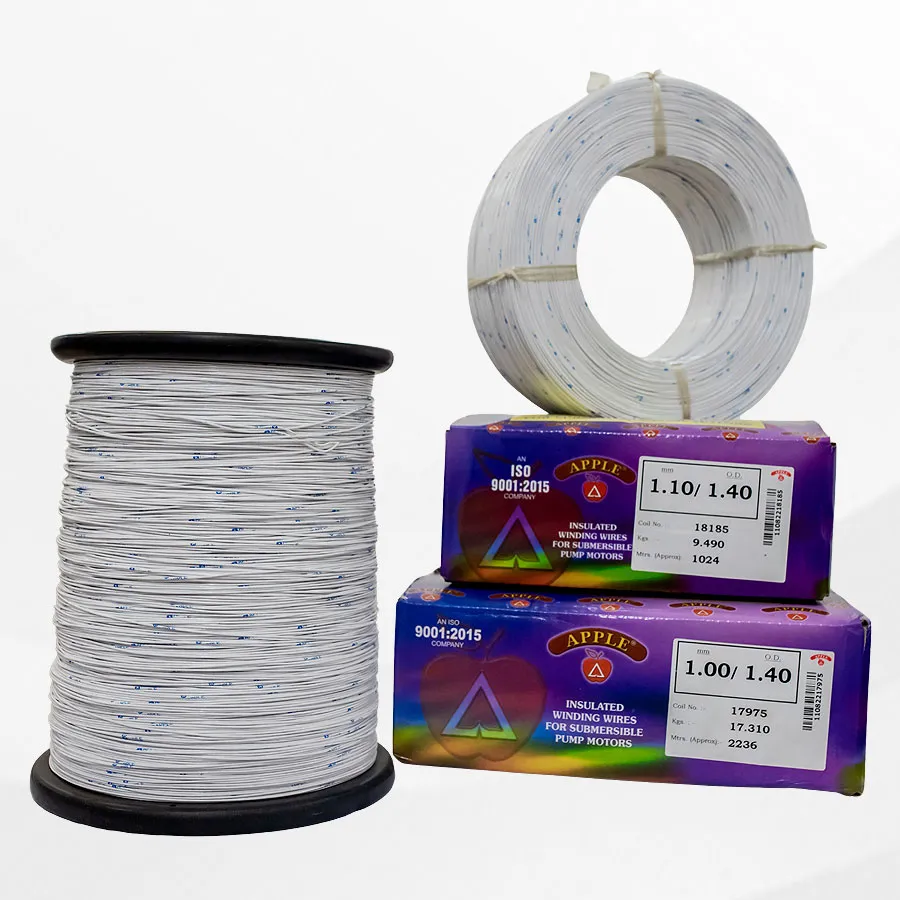

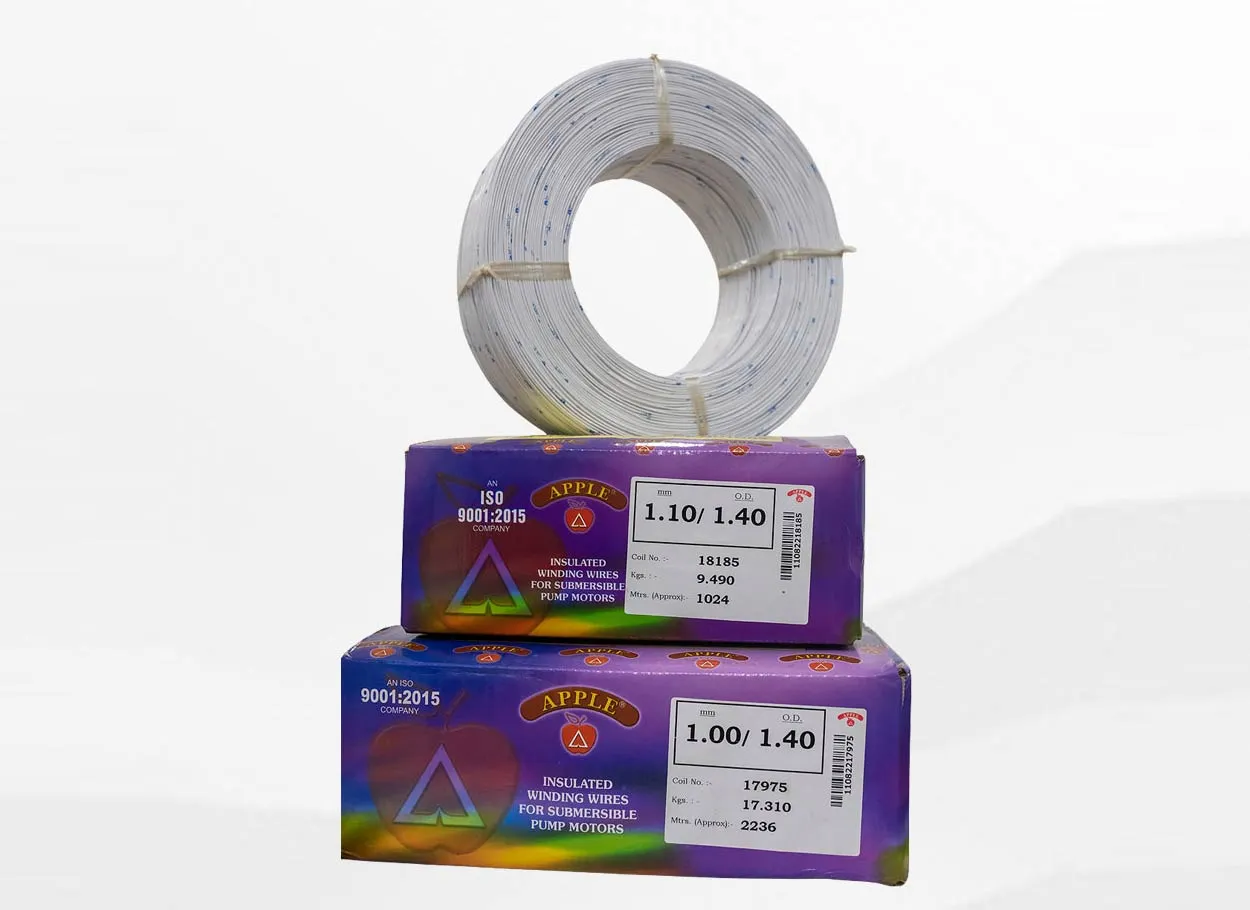

Polyester and Polypropylene Insulated Wires

What Are Polyester and Polypropylene Insulated Wires?

Polyester and polypropylene insulated wires are copper winding wires covered with two layers of plastic insulation. The inner layer is polyester. The outer layer is polypropylene. Together they protect the copper conductor from water, rubbing and chemicals.

Each layer has its own job. The polyester layer provides electrical insulation, which keeps the turns of the winding apart and stops short circuits. The polypropylene layer adds mechanical strength and resistance to water, abrasion and chemicals. The result is a wire that suits wet and demanding conditions.

You will find these wires sold under many names, such as polyester insulated wires, polypropylene insulated wires, submersible winding wire or submersible copper winding wire. If your motor works under water, this is the type of wire it needs.

Polypropylene Wire Insulation: Why It Matters

Polypropylene is a tough plastic that does not absorb water easily. As an outer layer on a winding wire, it works like a shield. It helps keep water away from the inner layers and the copper, and it takes the wear when the wire rubs against the slot or against other turns.

Polypropylene wire insulation is also resistant to many chemicals. That helps in water that carries minerals or other dissolved substances, which is common in borewells. A strong outer layer means the wire keeps its insulating quality for longer.

The Role of the Polyester Wire Layer

Underneath the polypropylene, the polyester wire layer provides the main electrical insulation. Polyester has good dielectric properties, which means it resists the flow of electricity between turns. It is also firm and stable, so it gives the insulation system a solid base.

Using the two materials together lets each one do what it does best. Polyester gives the electrical protection, and polypropylene gives the protection against water and wear. That is why this two-layer design is the standard choice for winding wires in submersible motors. The wire type is also covered by an Indian standard for submersible motor winding wires, IS 8783.

Key Features

These are the main features of our polyester and polypropylene insulated wires:

• Copper conductor: copper carries current well, which supports efficient motor performance.

• Two-layer insulation: polyester inside and polypropylene outside.

• Water resistance: the polypropylene layer helps keep water away from the copper.

• Electrical insulation: the polyester layer lowers the chance of short circuits.

• Tough outer layer: it resists rubbing, abrasion and chemicals.

• Thin and flexible: the wire fits well in the slot and is easy to wind.

Where Polyester Insulated Wires Are Used

This wire is used wherever a motor must work under water. Common uses include:

• Submersible pump motors for borewells and open wells

• Agricultural pumps for irrigation

• Domestic and municipal water supply pumps

• Industrial water-handling pumps

• Rewinding and repair of submersible motors

• Pump manufacturing, in small and large volumes

In all of these, the wire does the same job. It carries current through the winding while keeping water and wear away from the copper.

Benefits of Polypropylene Insulated Wires

Built for wet conditions. The polypropylene layer protects the winding where water is always present.

Dependable insulation. The two-layer design gives a strong barrier between turns and between the winding and the motor body.

Long service life. A tough outer layer helps the winding last through years of work in hard conditions.

Easy to wind. A thin, flexible wire is simpler to handle, both in new motors and in repairs.

Efficient performance. The copper conductor supports good current flow and keeps the motor compact.

Good value. A well-made winding wire helps avoid costly motor failures and rewinding.

Polyester and Polypropylene Insulated Wires vs Enameled Wire

Enameled winding wire has a thin coat of enamel and is made for motors that work in dry conditions, such as fans, appliances and industrial motors. It is not made to sit in water. Submersible motors need a wire with thicker, water-resistant insulation, and this is what polyester and polypropylene insulated wire offers.

If your motor works in dry conditions, see our super enameled copper winding wires. If it works under water, this wire is the better match. Not sure which one fits your design? Tell us about your motor, and our team will guide you.

How to Choose the Right Wire

A few simple checks will help you pick well:

1. Check the motor design. The slot size and winding plan decide the conductor size you need.

2. Choose the right conductor size. A thicker wire carries more current. Make sure the size fits the motor rating.

3. Check the working temperature. Wires of this type are made for limited conductor temperatures, so make sure your motor stays within the limit.

4. Match the insulation to the place. Use water-resistant insulation for motors that work under water.

5. Think about the job. A new motor build and a repair job may need different sizes.

6. Ask us for help. We can advise on size and insulation for your project.

To see our full submersible range, visit our submersible copper winding wires page. For the cable that carries power to the pump, see our cables range.

Winding and Handling Tips

Good wire can still be damaged by poor handling. These habits protect the insulation:

• Keep spools in a dry, clean place away from direct heat.

• Store them away from oil and strong chemicals.

• Avoid dragging the wire over rough or sharp edges.

• Do not bend it sharply or pull it too hard while winding.

• Use even tension so the insulation does not thin out or crack.

• Check the wire for nicks or damage before you wind it.

• Keep opened spools covered when they are not in use.

A small nick in the insulation can let water reach the copper later, so careful handling matters a great deal for submersible motors.

Why Buy from Apple Insulated Wires?

With over 25 years in the wire and cable industry, Apple Insulated Wires Pvt. Ltd. knows that pump makers need winding wire that behaves the same way in every batch. As a polyester and polypropylene insulated wires manufacturer and supplier, we treat small and large orders with the same care. Buyers who search for polyester insulated wires manufacturers or polypropylene insulated wires manufacturers will find that steady quality is what separates one supplier from another, and it is what we aim to give.

• Tested in our own lab: every product is checked in-house before it ships.

• Made to your needs: we can adjust conductor size and insulation to match your project.

• Clean processes: our work is RoHS compliant and eco-friendly.

• Bulk supply: we supply large quantities at competitive prices.

• India and export: we pack with care and prepare the documents needed for export.

• Wire and cable from one supplier: we also make submersible flat cables for pumps.

• Helpful support: our team is ready to answer your questions.

Get a Quote

Polyester and polypropylene insulated wires are a dependable choice for submersible motors. If you want to know the sizes available or need help choosing, our team will guide you. Call or message us on +91 9624471888. You can also write to info@applewires.com.
